An innovative tank building system

Faster projects, lower costs, and peace of mind thanks to proven technology and full-service support.

We offer two solutions:

Standard system

Allows you to build tanks from prefabricated, thick steel sheets. Ideal for large tanks (≈40 m+), especially where coil material isn’t available or space is limited.

Learn more
Advanced system

Allows you to build tanks from steel coil or flat sheets. Used for tanks up to 35–40 m, delivering high efficiency where coiled material is available.

Learn more

To whom?

Nordweld’s Tank Building System – combining an advanced lifting system and rotation system – is designed for companies involved in the construction of aboveground welded steel storage tanks. With more than 30 years of experience, we understand the challenges faced by tank manufacturers and contractors, helping them deliver safe, high-quality tanks on time and at competitive costs.

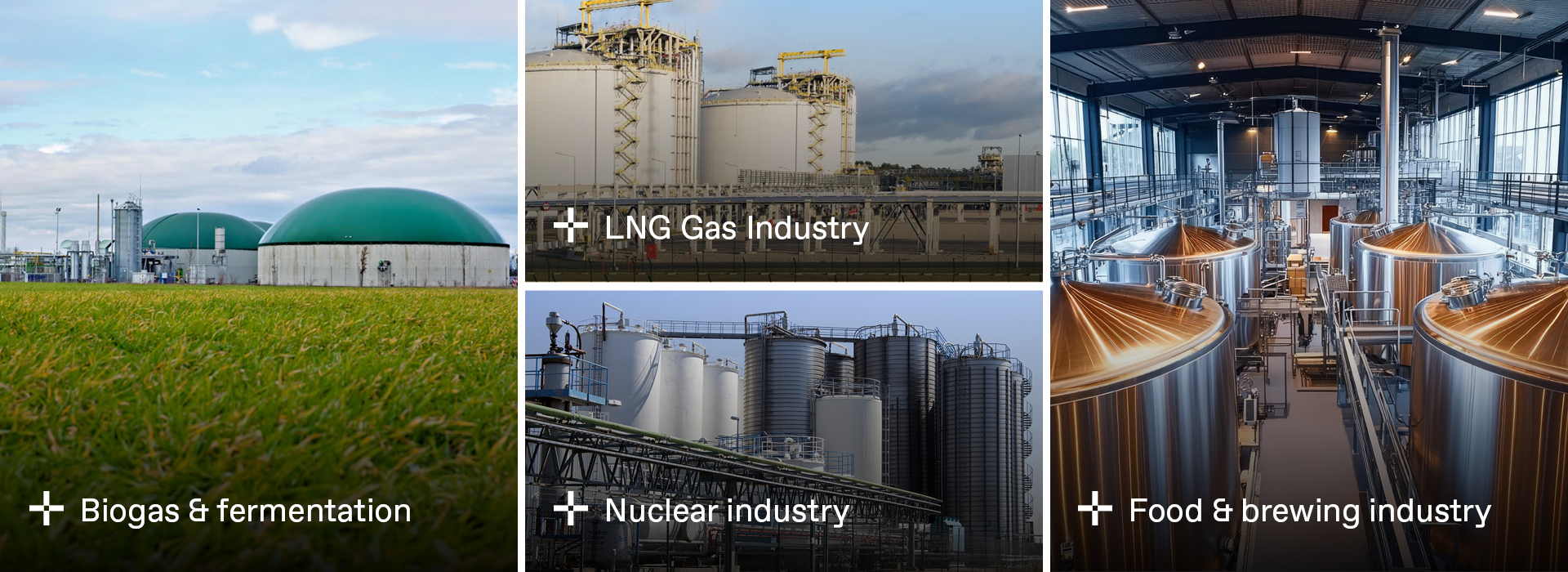

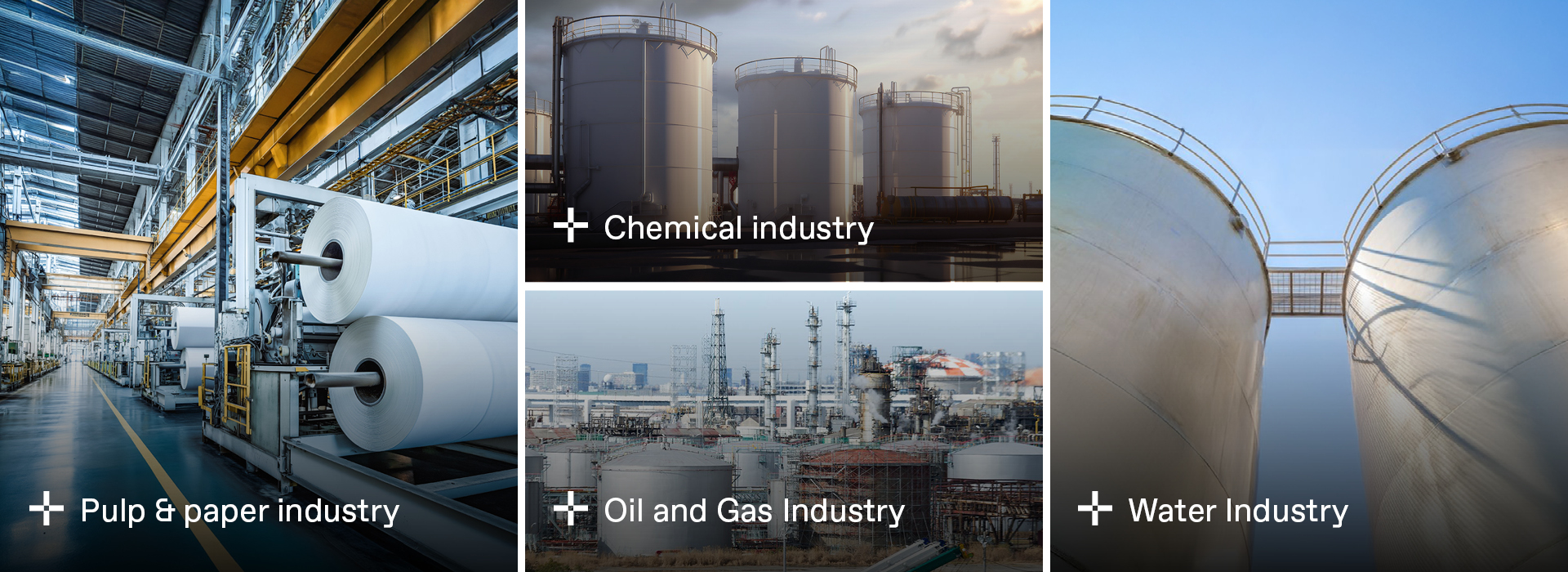

Our system supports the construction of storage tanks with diameters from 8 to 50 meters and a weight of up to 700 tons, making it an efficient solution for a wide range of industries such as oil & gas, LNG, biogas and fermentation, chemical, water, pulp & paper, food & beverage, brewing, and nuclear power.

Nordweld


The Standard system is engineered for the construction of large-sized steel, welded tanks using pre-rolled, thick steel plates. It is particularly effective in confined spaces, as all materials are fed from a single location. This approach is most suitable when coil material is unavailable, making pre-rolled plates the practical choice.

  • An all-round system for both SS and CS tanks
  • Suitable for CS/SS tanks up to 45 – 50 m in diameter
  • Builds tanks with pre-rolled plates
  • Rotates the entire tank during the construction process
  • Assembly of all material from one location
  • Full mechanized welding with MIG/MAG or SAW or Plasma / Arc Tig
  • All work performed at ground level
  • Retains the shape of the tank by starting with the roof and jacking the tank to full height – no barrel effect

Standard system


with Roller Beds

Download our catalog

Check the steps of building a tank using the Standard system

Nordweld

step 1

Unload the container.

Nordweld

step 2

Place the annular and bottom plates at the foundation.

Check the next steps


The Advanced System offers a smart, efficient solution for modern tank construction. Designed to work seamlessly with both coil and flat sheet materials, it is the perfect choice for projects that demand speed, flexibility, and reliability. Capable of building tanks up to 35–40 meters in diameter, this system eliminates the need for thick pre-rolled plates, streamlining the entire process. The result is a highly cost-effective and versatile construction method that delivers outstanding performance.

  • A high-efficient system for both SS and CS tanks
  • Builds tanks directly from coil or flat sheets
  • Alignment and tack welding during the in-feeding process
  • Suitable for CS/SS tanks up to 35 – 40 m in diameter
  • Rotates the entire tank during the construction process
  • Assembly of all material from one location
  • Full mechanized welding with MIG/MAG or SAW or Plasma / Arc Tig
  • All work performed at ground level
  • Retains the shape of the tank by starting with the roof and jacking the tank to full height – no barrel effect

Advanced system

with Wheel Trolley

Download our catalog

Check the steps of building a tank using the Advanced system

Nordweld

step 1

Place the annular and bottom plates at the foundation. Place the equipment on the annular plates and assemble the Lift Jacks including Wheel Trolleys. Place the vertical bending machine / decoiler / plate track in position.

Nordweld

step 2

Feed in the first course.

Check the next steps
Check our components
Tack Weld Stand

Tack Weld Stand

The horizontal joint is aligned as the tank rotates continuously.

See more
Wheel Trolley

Wheel Trolley

The Wheel Trolley is a component of our Advanced System and is installed on the Lift Jack.

See more
Lift Jack

Lift Jack

Lift Jacks are used to erect tanks of larger diameter when building in a top-down method.

See more
Tank Rotator

Tank Rotator

Our specially designed Tank Rotating System, unique in the tank building industry, ensures a fast and efficient construction process.

See more
Roller Bed

Roller Bed

The Roller Beds are positioned around the perimeter of the tank bottom.

See more

Electromechanical lifts – main advantages

Precise
synchronization

Inverters and encoders ensure constant speed and even lifting of all units.

No leaks
or contamination

No hydraulic fluid required, eliminating spill risks and tank surface contamination.

Lower maintenance
costs

Fewer failure-prone components, no pumps or seals – reduced downtime and simpler service.

Enhanced
safety

Self-locking screws prevent uncontrolled descent, protecting workers and tanks.

Reliable
in all conditions

Stable performance in both high and low temperatures, unlike oil-dependent hydraulics.

Higher
energy efficiency

Up to 95% efficiency compared to 60–80% for hydraulic systems.

Quiet
operation

Noise levels below 60 dB, much quieter than hydraulic alternatives.

Plug &
play setup

Powered only by electricity – no pumps, oil tanks, filters, or hydraulic components needed.

What our clients talk about us

See our latest projects

Nordweld

France 2024

  • Number of tanks: 2
  • Diameter: 16,5 m / 54,13 ft
  • Height: 16 m / 52,49 ft
  • Weight: 55 t / 121254 lbs.
  • Capacity: 3,400 m³ / 898185 gal.
Nordweld

Finland 2024

  • Number of tanks: 1
  • Diameter: 19 m / 62,33 ft
  • Height: 18 m / 59,05 ft
  • Weight: 158 t / 348330 lbs.
  • Capacity: 5100 m3 / 1347277 gal.

Our story

Niklas Nordin has been active in the steel tank building industry since 1990. His innovative approach began with replacing stick welding rods with MIG/MAG machines and later mechanizing the process by rotating entire tanks. In 1998, he designed the first generation of Nordweld’s tank building system, which he continued to refine over the years.

“I started my career as a tank builder. This system is designed by a tank builder for tank builders – covering everything from transport and installation to adaptability for constructing any tank anywhere in the world.” says Niklas Nordin.

We are the gold winner of

Nordweld

in the Innovative technology category.
