Uruguay 2021 – 2022

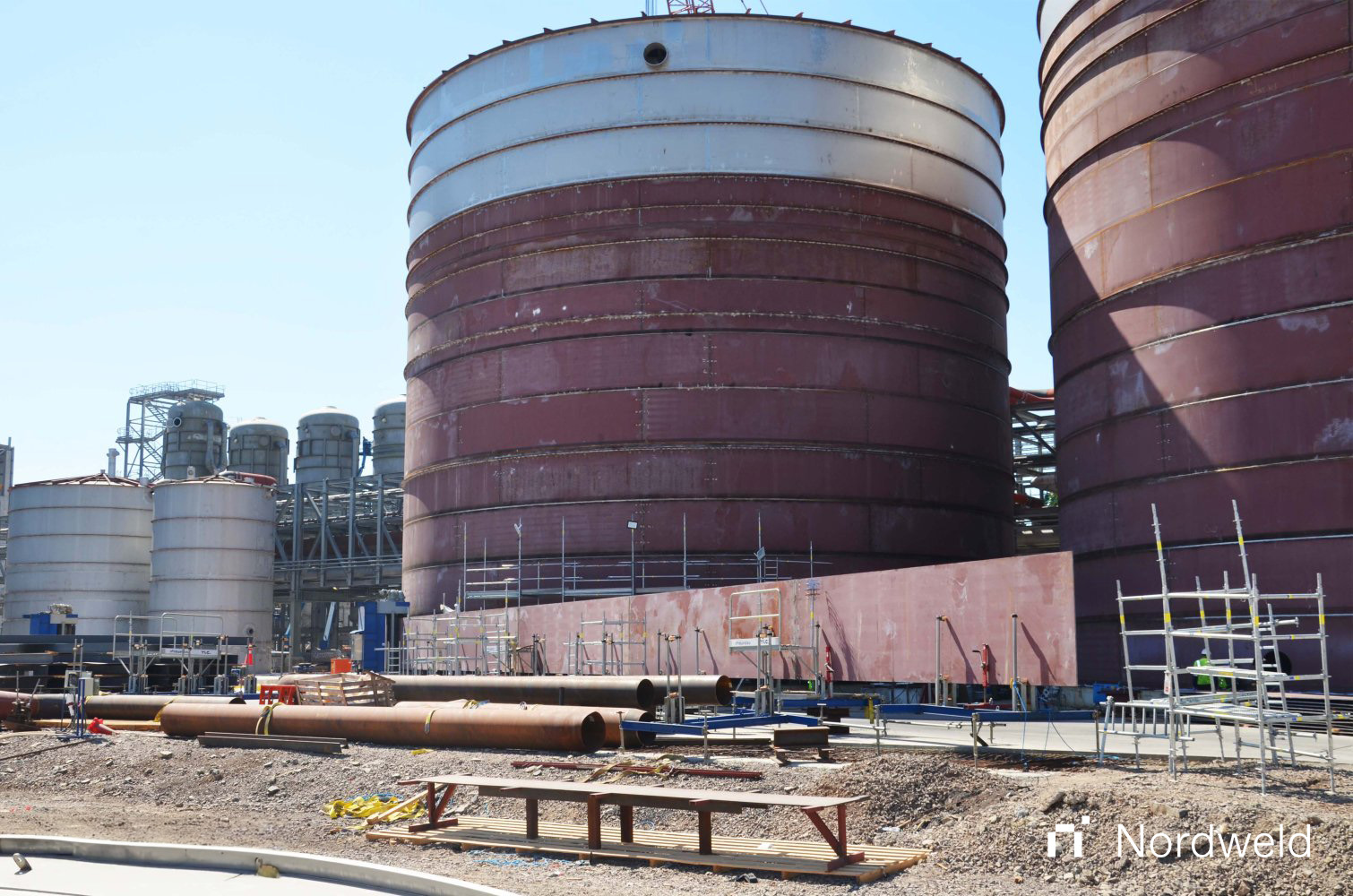

Between 2021 and 2022, Nordweld’s tank building system was used to field-erect several tanks in Paso de los Toros.
Project details:
| Number of tanks | Diameter | Height | Weight | Capacity | Material |
|---|---|---|---|---|---|
| 2 | 26.7 m | 28 m | 356 t | 15 600 m³ | LDX2101 / CS |
| 1 | 22.1 m | 26.85 m | 200 t | 10 600 m³ | LDX 2101 |
| 1 | 19 m | 25.5 m | 115 t | 7100 m³ | LDX 2101 |
| 5 | 6.5m-12m | 12.3-40.26m | 16 t – 95 t | 530-2800 m3 | 1.4301 / 1.4362 |
- Used tank building system: Advanced System with wheel trolley, bending machine and plate track, Arc Tig welding process of circumference for the stainless-steel tanks and SAW for the carbon steel tanks.
For more information about our tank building technology, please visit our contact page.
Gallery
See our other projects
Italy 2026
- Number of tanks: 3
- Diameter: 26 m ft
- Height: 7 m ft
- Shell and bottom plates: carbon steel 273 lbs.
- Used tank building system: Standard System with roller beds, tank rotators and lift jacks.
Hungary 2025
- Number of tanks: 1
- Diameter: 16 m / 52,49 ft ft
- Height: 17 m / 55,77 ft
- Weight: 120 t / 264555 lbs.
- Capacity: 3000 m³ / 792516 gal.
Austria 2024
- Number of tanks: 1
- Diameter: 9.5 m / 31.16 ft ft
- Height: 12 m / 39,37 ft
- Weight: 33 t / 72752 lbs.
- Capacity: 800 m³ / 211338 gal.
